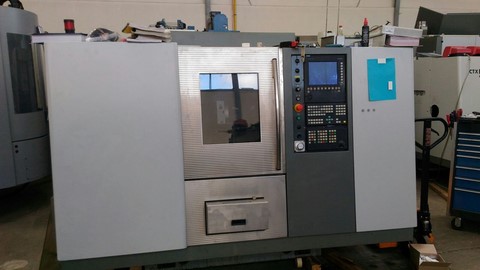

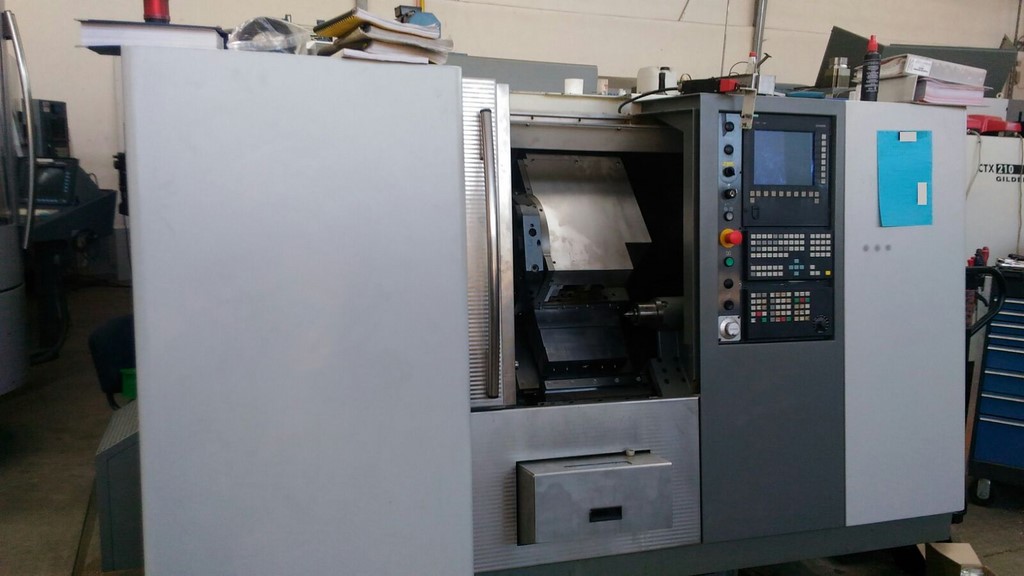

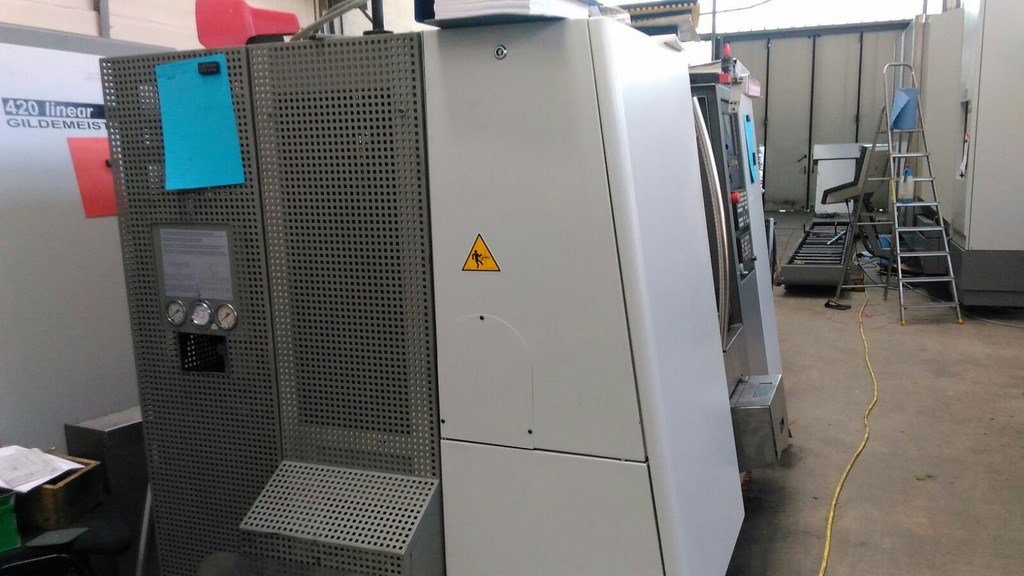

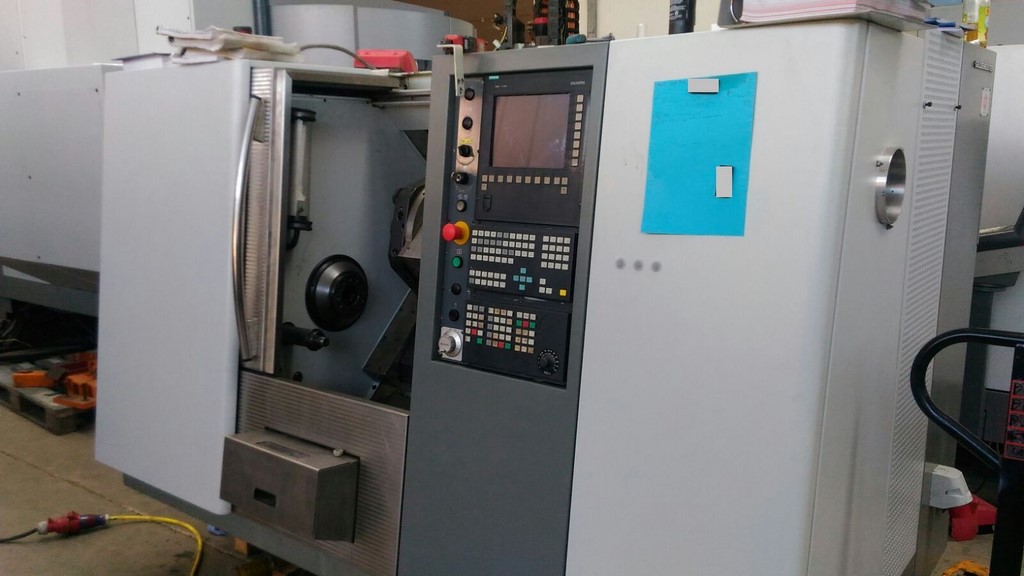

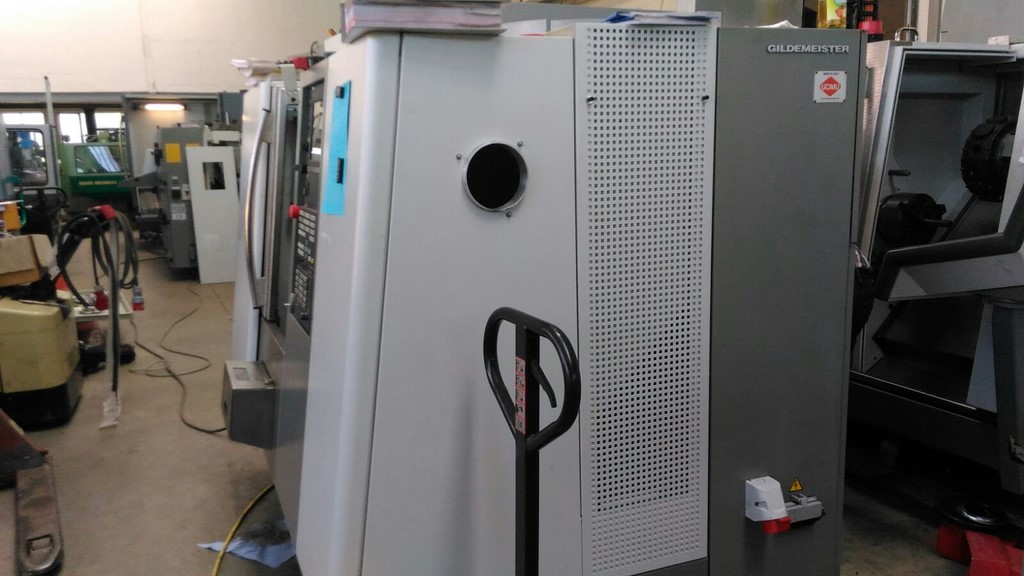

CNC Lathe Used GILDEMEISTER
CTX 310 V3 Drived Tools
Technical Specifications
Renew on 2016, works done:
- Changed Linear Guide Axis X
- Changed Linear Guide Axis Z
- Renew Spindle on Oct. 2016
- Renew Motors by Siemens
- Renew Motors by Siemens
| CNC Control | Siemens |
|---|---|
| Year of Build | 2004 |
| Spindle Range | 0 - 4.000 rpm |
| Axis C | 360000° |
| Axis Y | 0,001° |
| Diameter up the bad | 465 mm |
| Turning Diameter | 220 mm |
| Turning Length | 450 mm |
| Spindle hole | ∅ 50 mm |
| Tailstock | Idraulic |
| Turret with drived tools | 12 positions |
| Rapid Feed | X: 30 mt /min Z: 30mt /min |
| Spindle Power | 8,5 kW |
| Drived tools | 18 Nm |
| Chuck Size | D. 210 mm |
| Tool change time | 0,1 sec |
| Machine Life time | 400 mm |
| Spindle life time | 100 mm |
| Sizes (lung.x largh.x alt.) | 3075 x 1594 x 1730h mm |
| Weight | 3.200 kg |
ACCESSORIES INCLUDED | |
| Software Option | Shop Turn - included |
| Chip Convoyer | yes |
| Refrigerator high pressure | 6 Bar |
| Chuck D. 315mm | included |
| Series of clamps | 3 |
| Series of tools holder | included |
