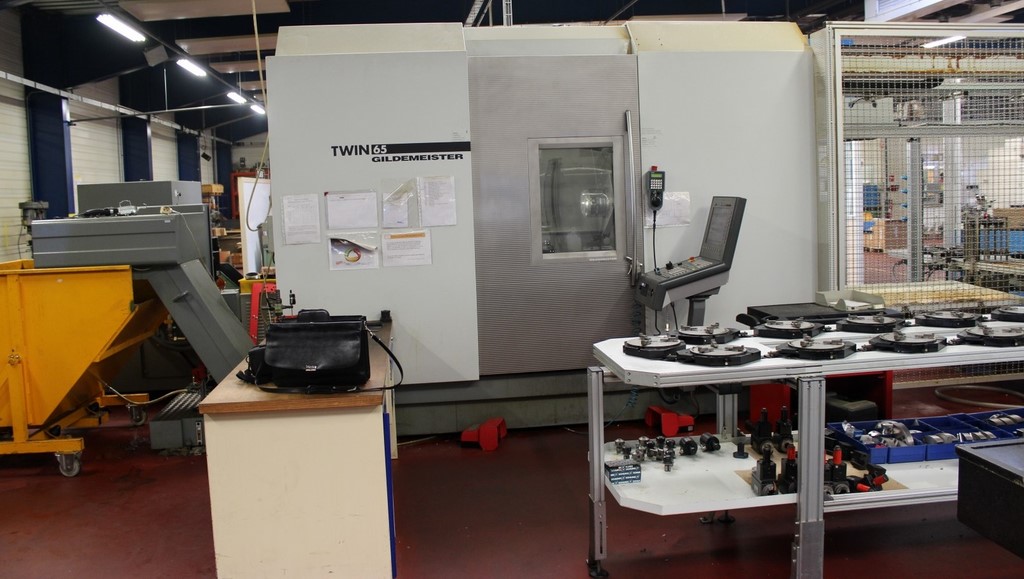

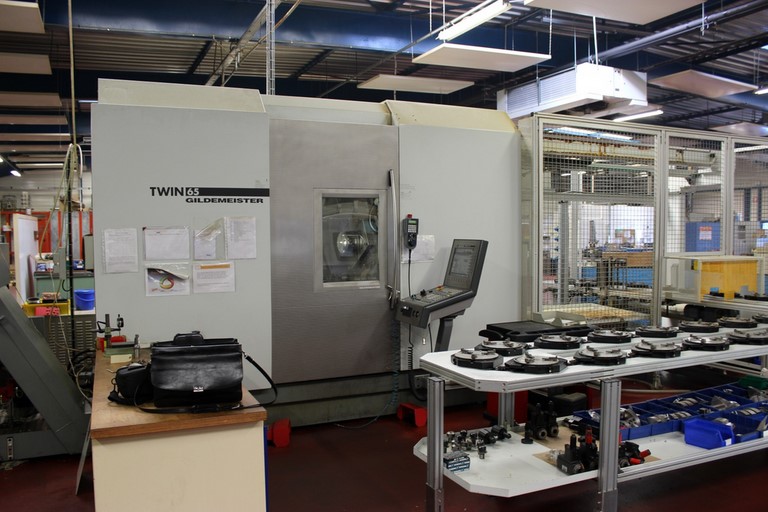

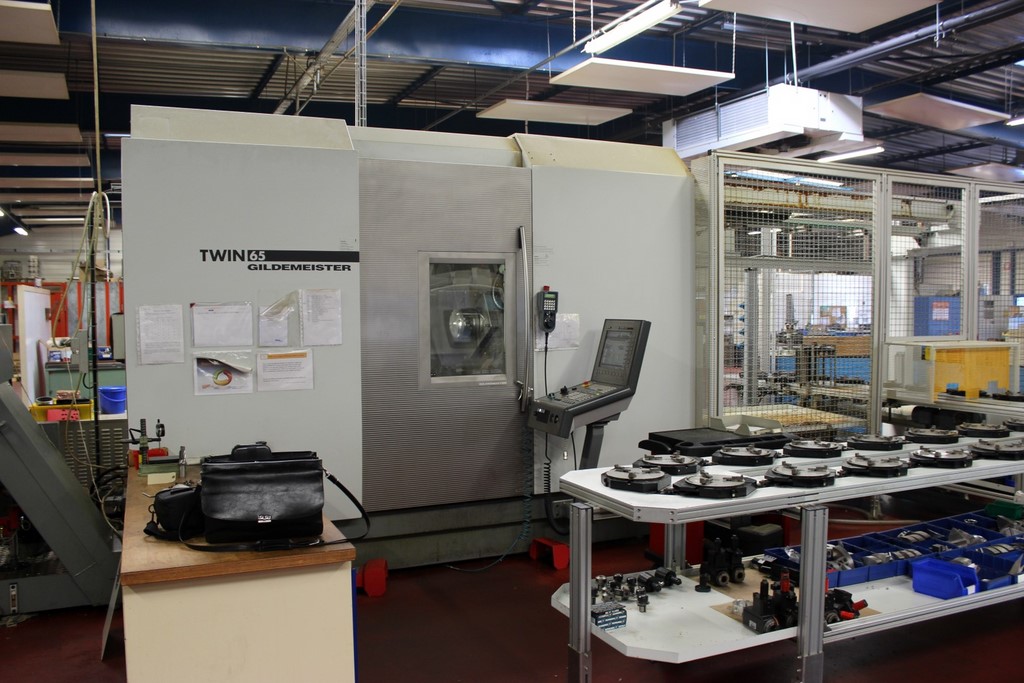

Lathe Gildemeister TWIN 65 Y + Gantry 35 pallets
Used
Technical Specifications
| Model | TWIN 65 + Gantry |
|---|

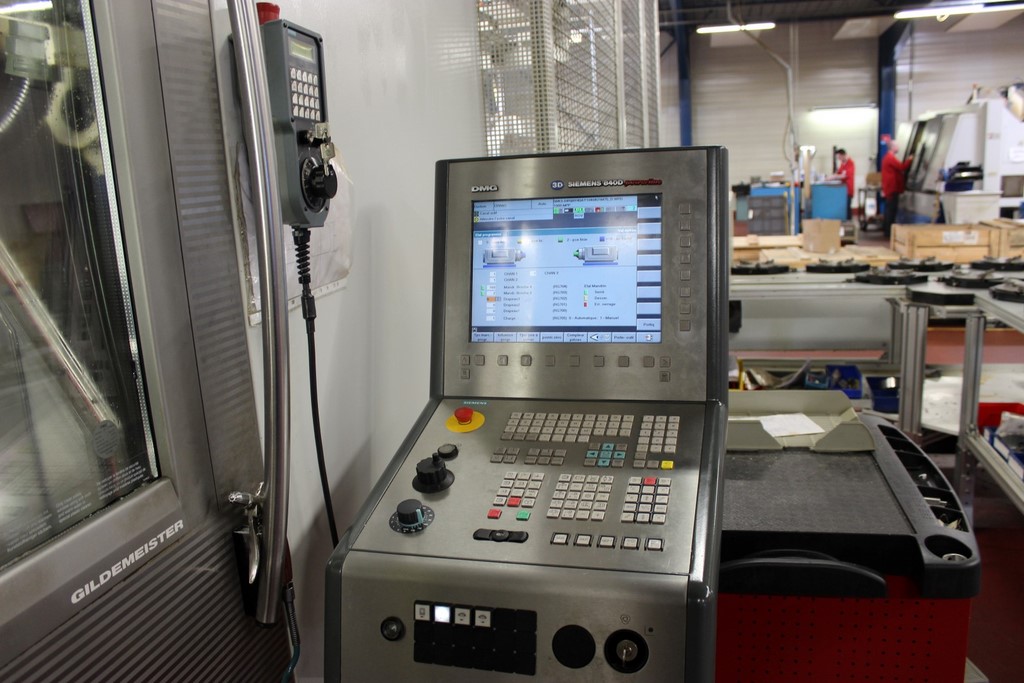

| Control | Siemens 840D Powerline |
|---|
| Year | 2007 |
|---|
| Swing Diameter | 200 / 250 mm |
|---|
| Lunghezza Tornibile | 900 mm |
|---|
| Hole Bar | 65 mm |
|---|
| Spindle 1 range | 5000 rpm |
|---|
| Spindle 1 Power | 25 KW |
|---|
| Chuck 1 Diameter | 200 mm |
|---|
| Axis C Spindle 1 | 0,001° |
|---|
| Spindle 2 range | 5000 rpm |
|---|
| Spindle 2 Power | 20 KW |
|---|
| Travel Spindle 2 | 175 mm |
|---|

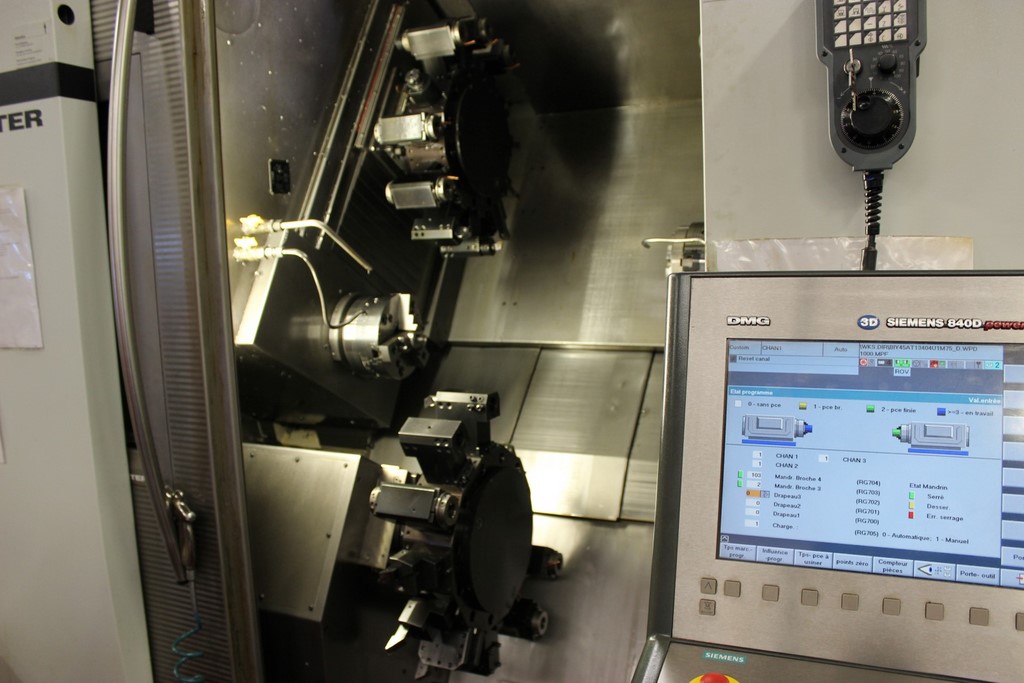

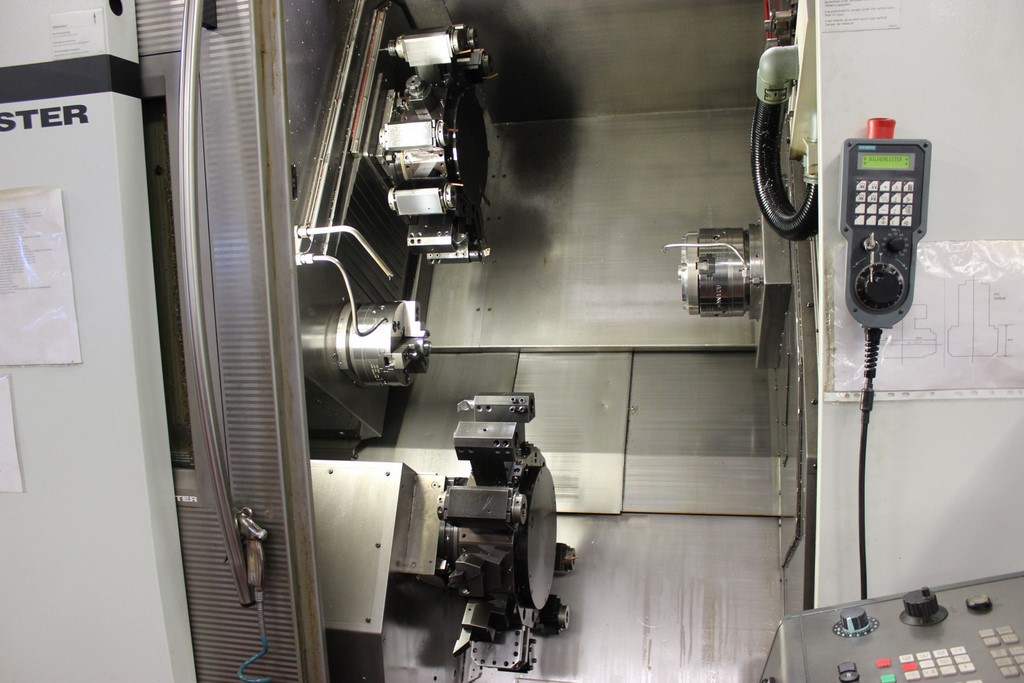

| Turret1 (Superior) | 12 pocket |
|---|
| Travel Axis X Turret 1 | 300 mm |
|---|
| Corsa Asse Z Torretta 1 | 600 mm |
|---|
| Travel Axis Y Turret 1 | + 40 / - 40 mm |
|---|
| Drived Tools | 5000 rpm |
|---|
| Turret 2 (down ) | 12 posti |
|---|
| Travel Axis X Turret 2 | 180 mm |
|---|
| Travel Axis Z Turret 1 | 650 mm |
|---|
| Coolant System | 8 - 20 Bar |
|---|

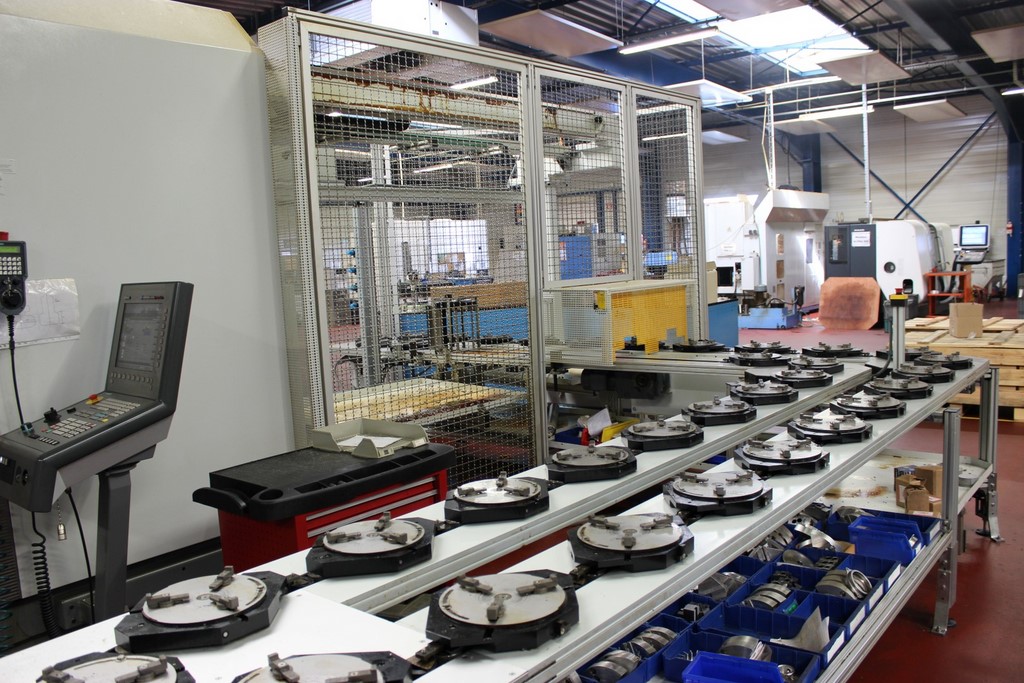

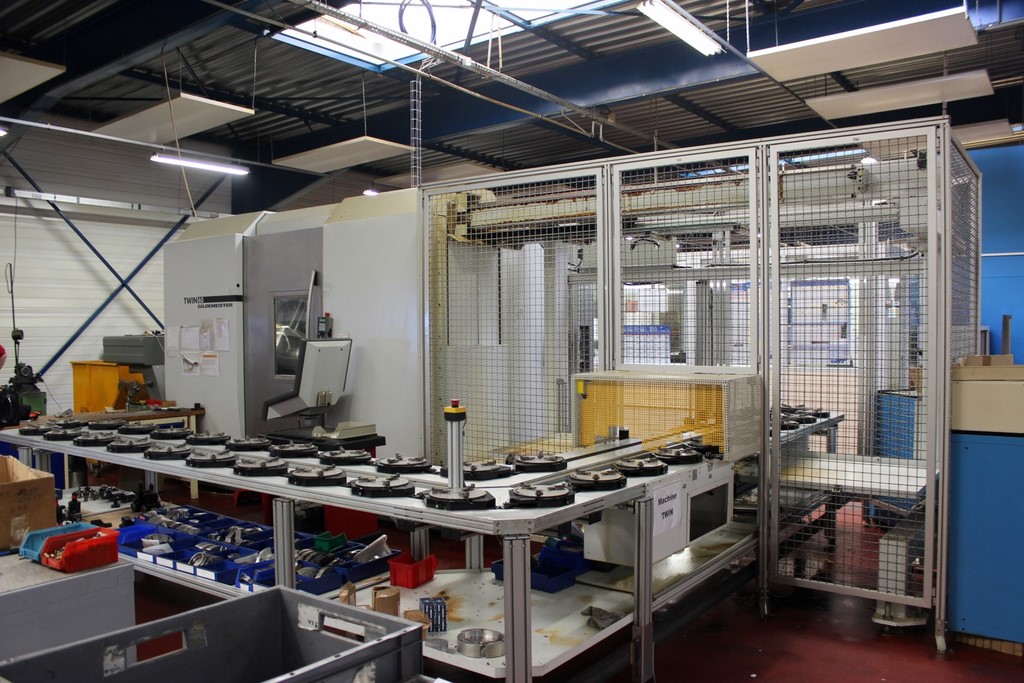

| Loading Parts - Gantry | 35 pallets ( 200mm ) |
|---|

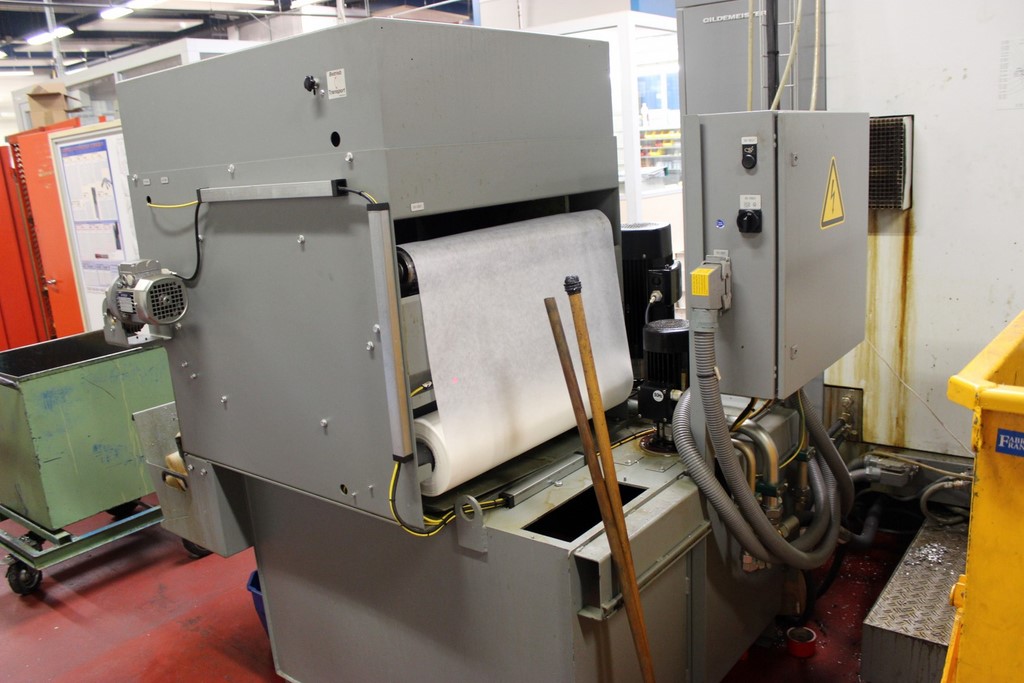

| Paper Filter | incluso |
|---|
| Chip Convoyer | incluso |
|---|
| Spindle life time | 10.000 h |
|---|
| |
|---|
