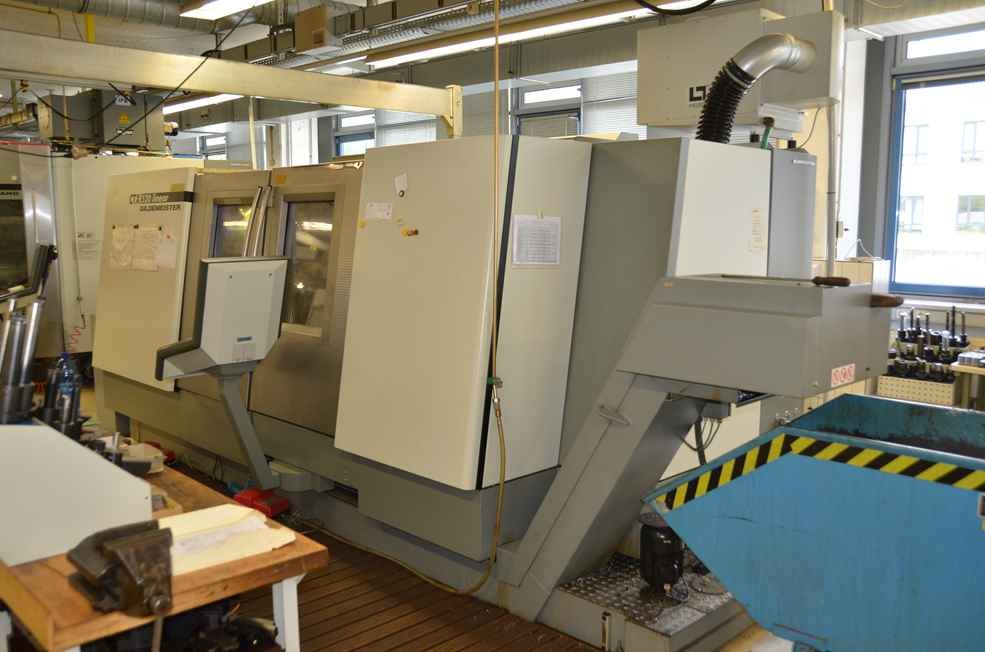

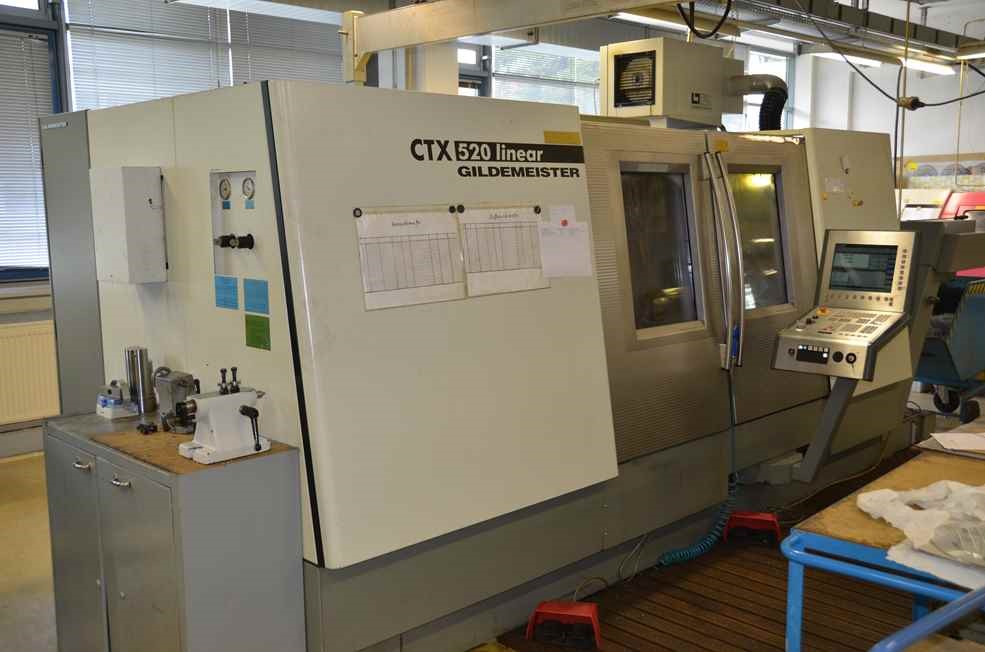

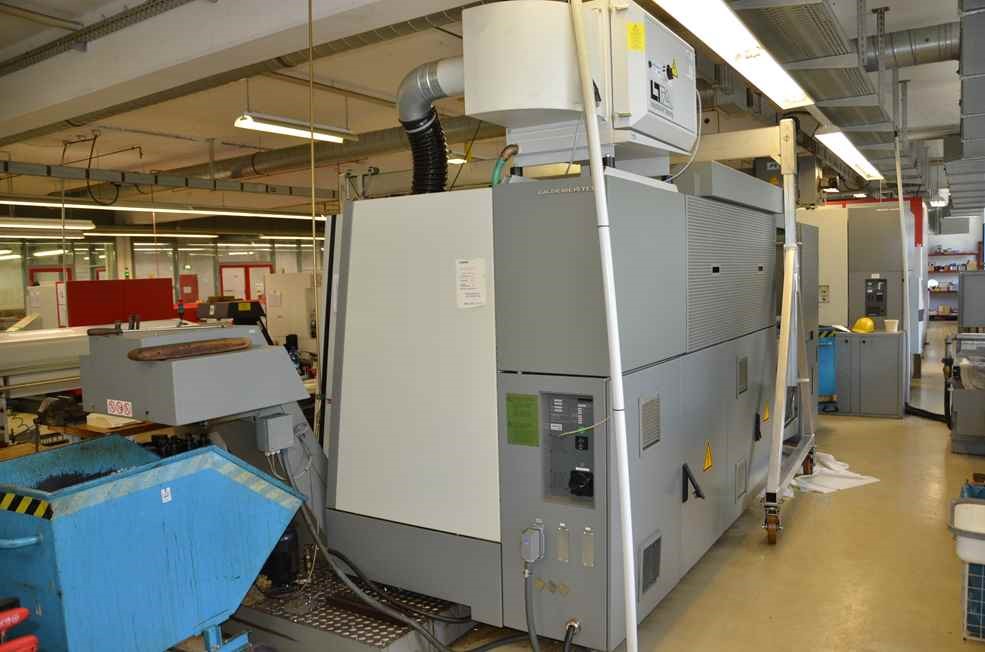

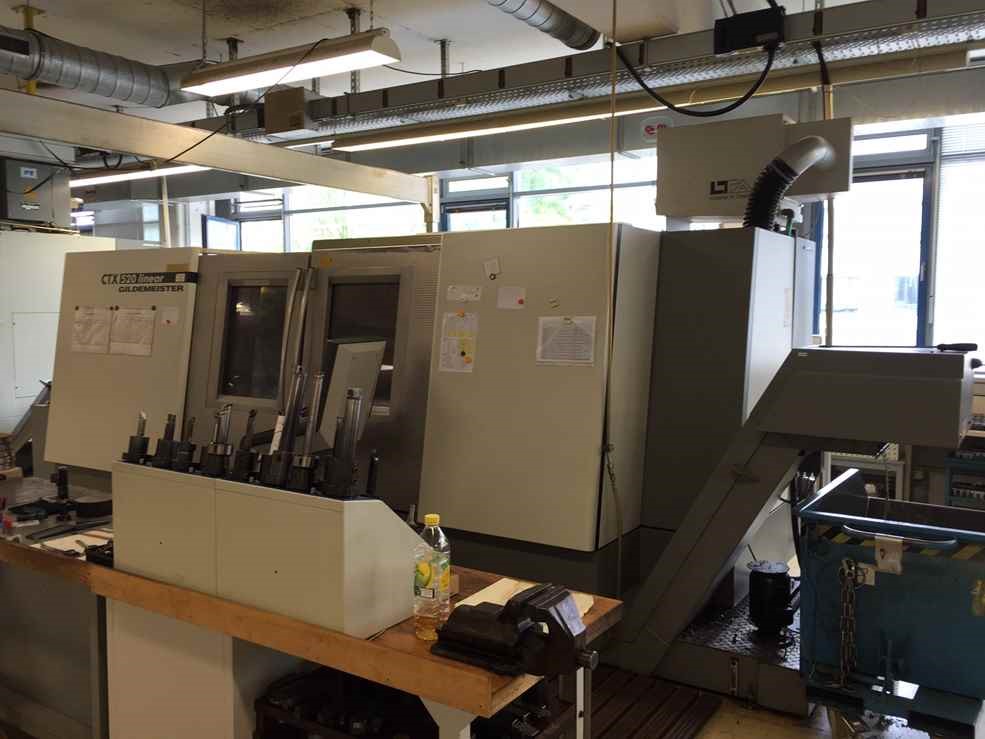

CNC Lathe Used DMG MORI SEIKI
CTX 520 LINEAR
SOLD
Technical Specifications

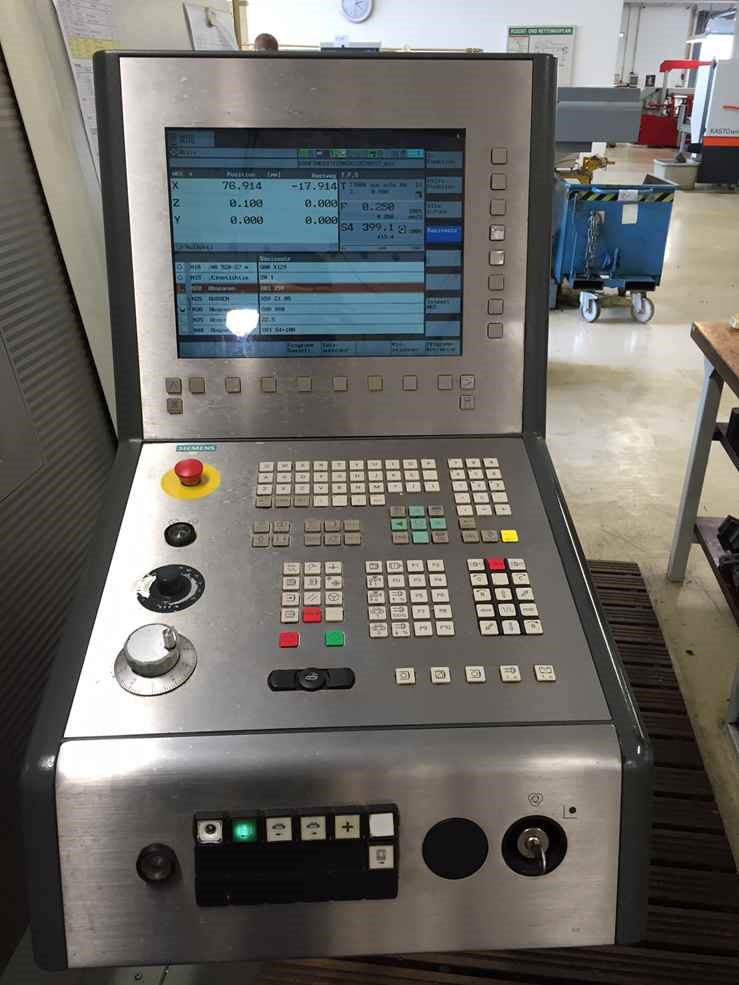

| CNC Control | Siemens 840 D powerline |
|---|---|
| Year of Build | 2004 |
| Spindle Range | 0 - 4.000 rpm |
| Axis C | 360° |
| Axis Y | 40 mm |
| Diameter up the bad | 680/565 mm |
| Turning Diameter | 440 mm |
| Turning Length | 1300 mm |
| Spindle hole | ∅ 90 mm |
| Tailstock | Idraulic |

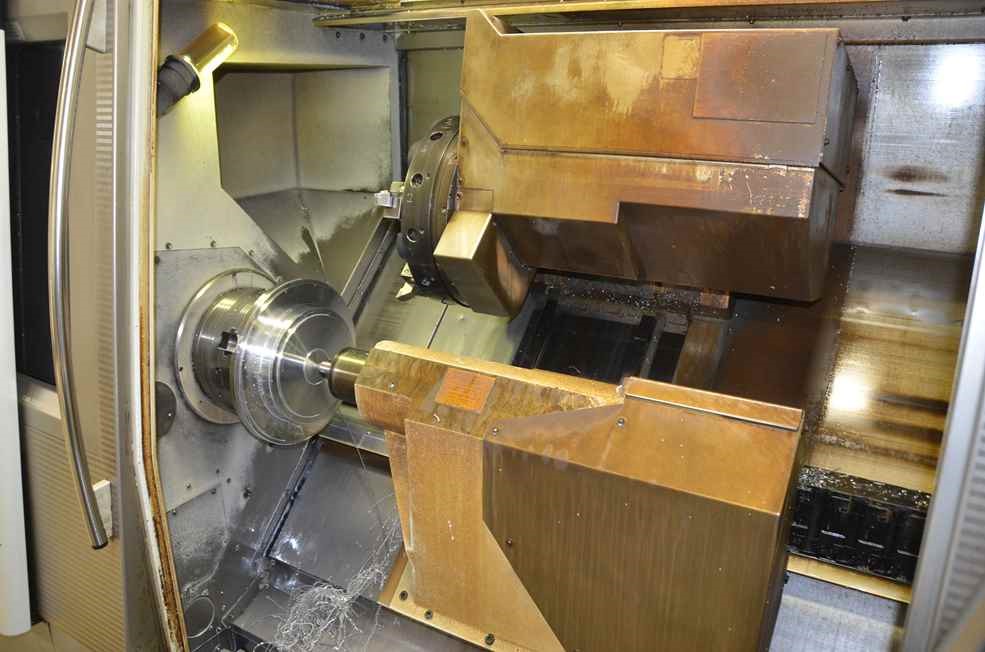

| Turret with drived tools | 12 positions |
| Rapid Feed | X: 60 mt /min Z: 45 mt /min Y: 15 mt /min |
| Spindle Power | 36/45 kW |
| Drived tools | 600/750 Nm |
| Chuck Size | D. 315 mm |
| Tool change time | 0,1 sec |
| Machine Life time | 53900 h |
| Spindle life time | 19700 h |
| Sizes (lung.x largh.x alt.) | 5742x2120x2230 mm |
| Weight | 10.700 kg |
ACCESSORIES INCLUDED | |
| Software Option | Shop Turn - included |
| Chip Convoyer | yes |
| Refrigerator high pressure | 20 Bar |
| Chuck D. 315mm | included |
| Series of clamps | 3 |
| Series of tools holder | included |
