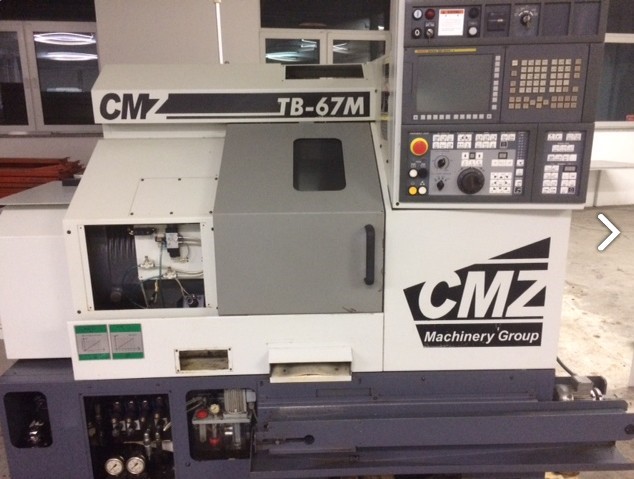

CNC LATHE CMZ TB67M Used 2010
SOLD
Technical specifications
| CNC Control | Fanuc 32i |
|---|---|
| Year of Build | 2010 |
| Spindle Range | 60- 4.000 rpm |
| Spindle life time | 4800 |
| Travel Axis X | 200 (170+30) mm |
| Travel Axi Z | 400 mm |
| Max. Diameter max. over bad | 640 mm 385 mm 340mm |
| Spindle hole | 73 mm |
| hole bar diameter | 66 mm |
| Spindel 2 | Manual / Idraulic D.90 mm Nr. 5 120 mm 200 mm 885 Kg |

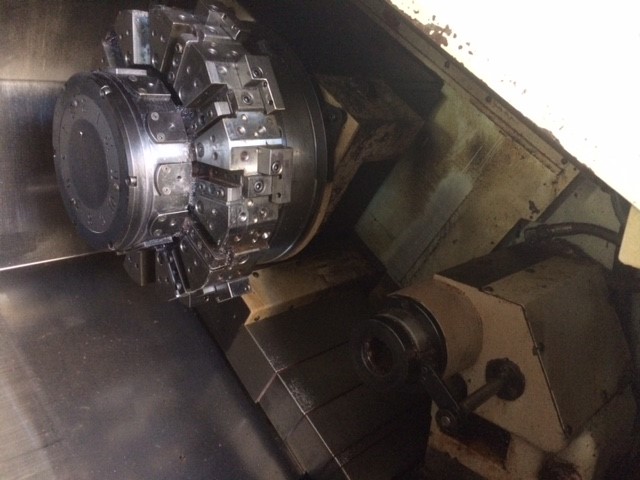

| Turret | 12 |
| Rapid | 30 mt /min |
| Number of tools | Kw 22 / 15 Nm 366 / 286 |
| Drived tools | 12 stations drived |
| Chuck size | Autoblock 210 + Portapinze Autoblock |
| Time change tools | 0,7 sec |
| Power kW | KWA 40 |
| Machine Weight | 3.700 Kg |
| Machine Sizes ( L x L x H) | 1653x1620x1670 mm |
ACCESSORIES INCLUDED | |
| Bracket download pieces | included |
| Chip Convoyer | included |
| Double pedal | included |
| Pump cooling | 2 pomps ( 1 hight pressure ) |
| Trasportatore Trucioli | Incluso |
| Fixed Tools | included |

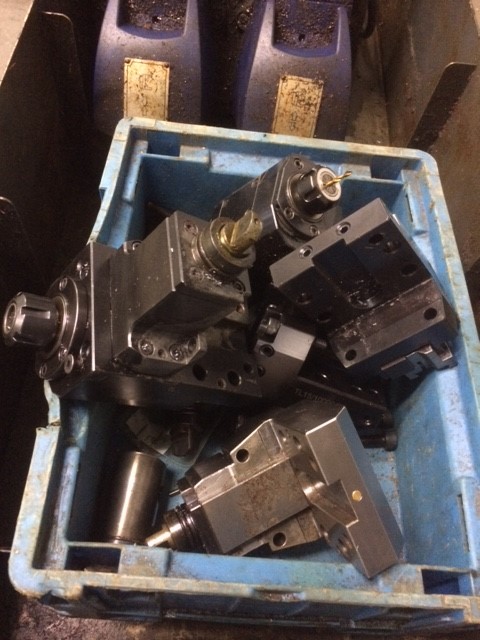

| Drived Tools | 6 pcs ( 3 radial + 3 axial ) |
