Milling Machine 5 Axis MIKRON UCP 600
Used
Used
SOLD
Specifiche Tecniche

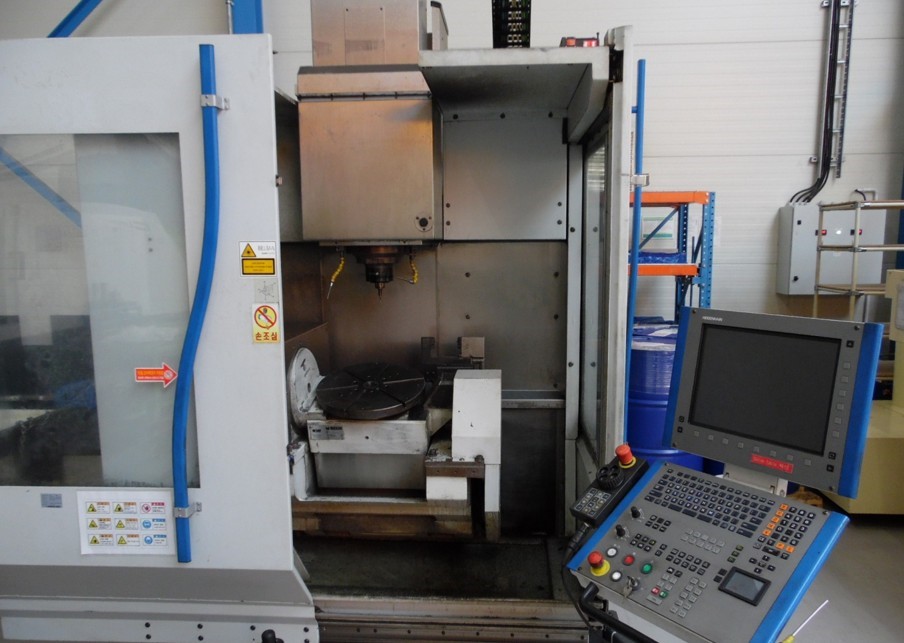

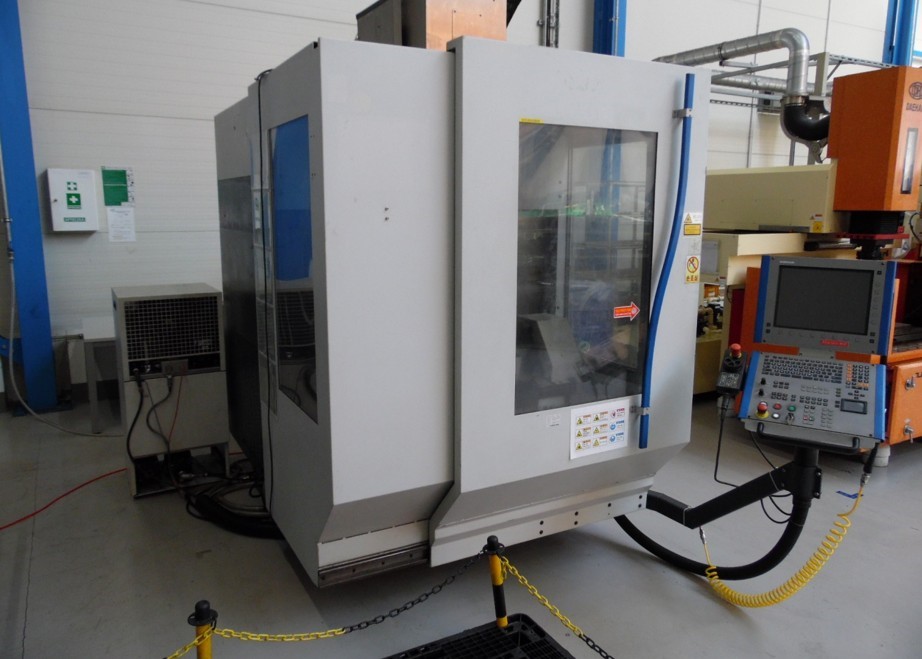

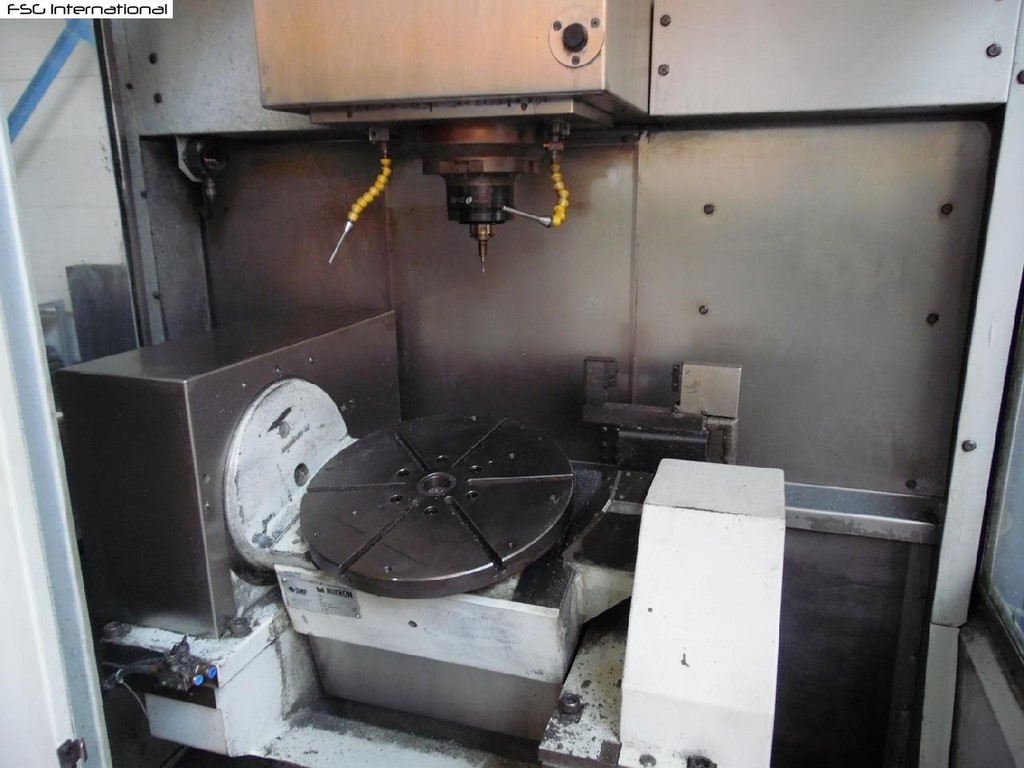

Vertical Milling Machine 5 Axis MIKRON UCP 600
Heidenhain iTNC 530
Technical Specifications
| Travel X | 530 mm |
|---|---|
| Travel Y | 450 mm |
| Travel Z | 450 mm |
| Spindle Power | 14 Kw |
| Working Area | D. 400 mm |
| Loading Table | 200 kg |
| Spindle Type | HSK-40E/DIN 69893 |
| Spindle range | 0-42000 rpm |

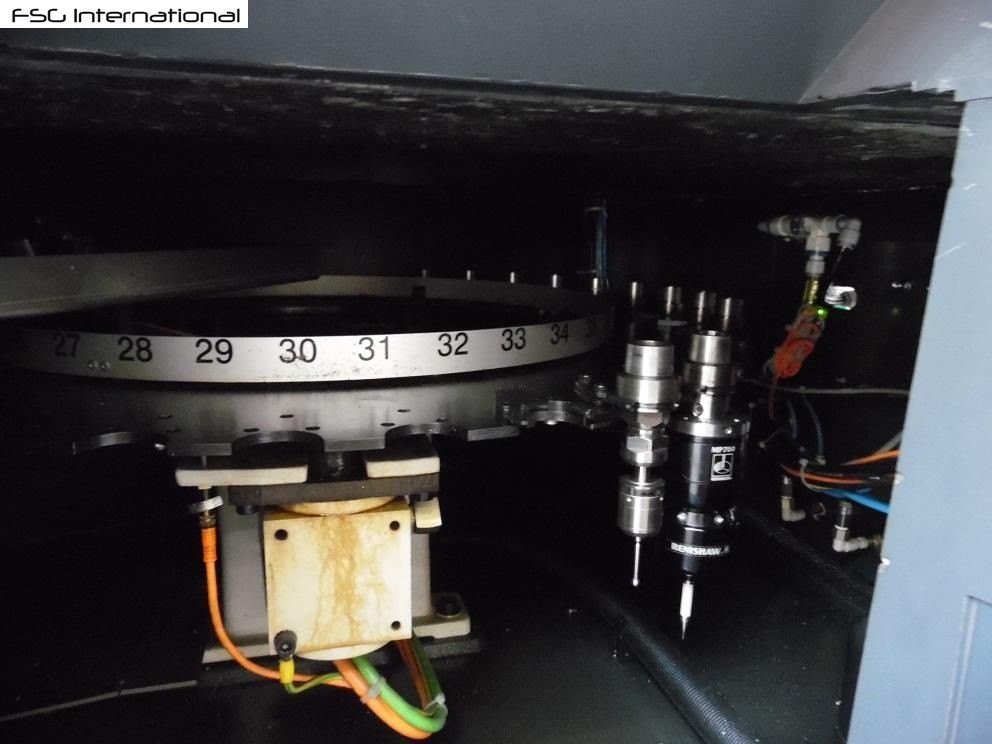

| Tools Stations | 36 |
| Feed | 0-30000 mm / min |
| Rapid Axis X | 60 |
| Rapid Axis Y | 60 |
| Rapid Axis Z | 60 |
| Pallets Sizes | |
| Minimal Lubrification | Yes |
| Blum Laser | Yes |
| Internal Cooling | 30 Bar |
| Remote Control | included |
| Cycle ATC-Software | included |
| DXF Import | included |
| Direct misurement system | included |
| Chip Convoyer | excluded |
| Spindle life time | 15.775 h |
| Machine life time | 58.041 h |
| Programming Time | 32.205 h |
