DMG Mori HSC 55 Linear
Pallet Change - Used
Specifiche Tecniche

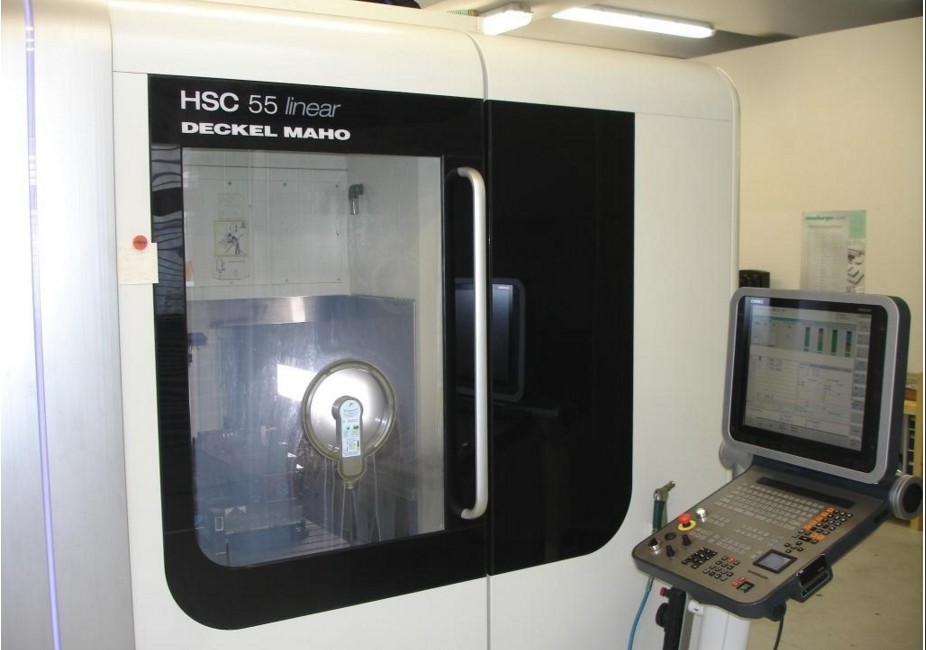

DMG-Mori HSC 55 Evo linear
Year of Build 2008,

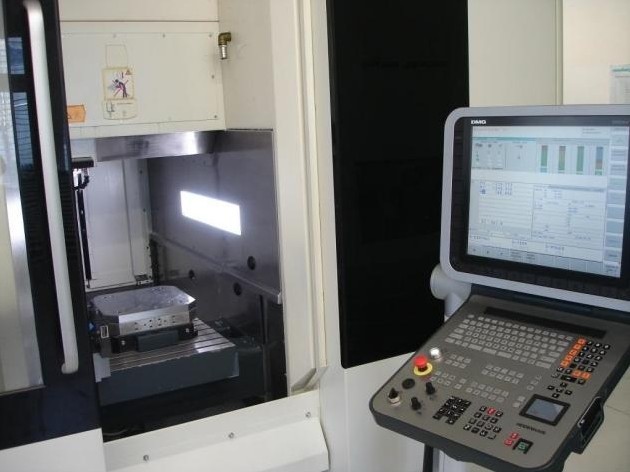

CN control Heidenhain ITNC 530

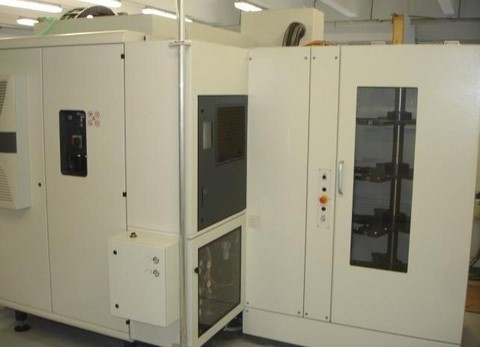

Pallet Change ( 20 stations)
Option hight dynamic
Technical Specifications
| Corsa Asse X | 450 mm |
|---|---|
| Corsa Asse Y | 580 mm |
| Corsa Asse Z | 460 mm |
| Travel Axis B | 38 / 28 Kw |

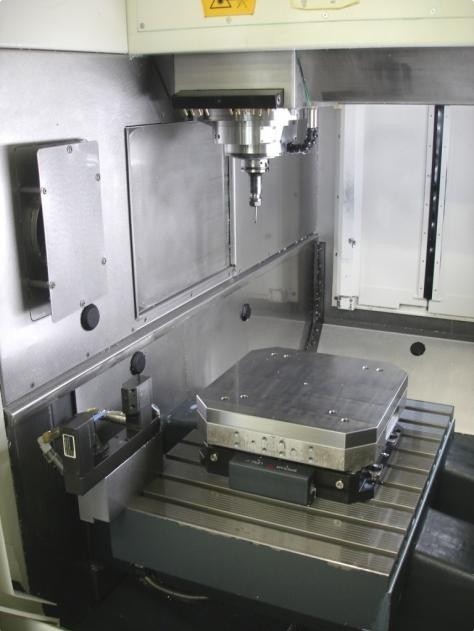

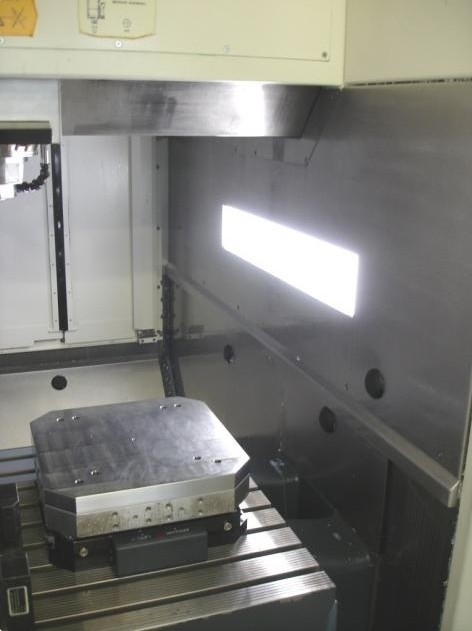

| Working Area | 600 x 460 mm |
| Loading Table | 600 kg |
| Spindle Type | HSK 63 |
| Spindle range | 0-28000 rpm |
| Tools Stations | 120 |
| Feed | 0-40000 mm / min |
| Rapid Axis X | 80 |
| Rapid Axis Y | 80 |
| Rapid Axis Z | 80 |
| Pallets Sizes | UPC 320 x 320 mm |
| Number of Pallets | 20 |
| Blum Laser | Si |
| Internal Cooling | 40 Bar / 600 Lt |
| Remote Control | included |
| Cycle ATC-Software | included |
| DXF Import | included |
| Direct misurement system | incluse |

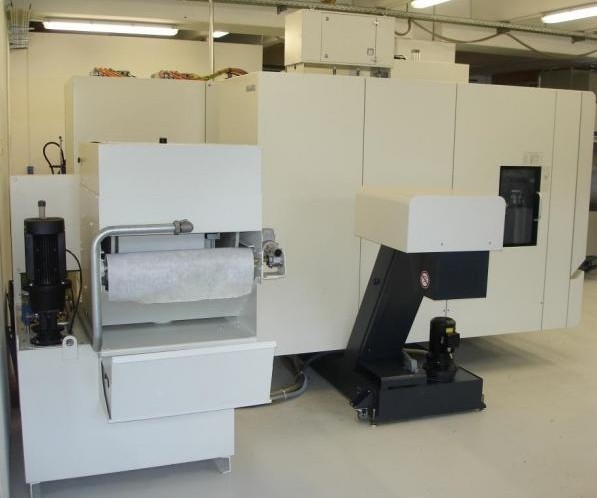

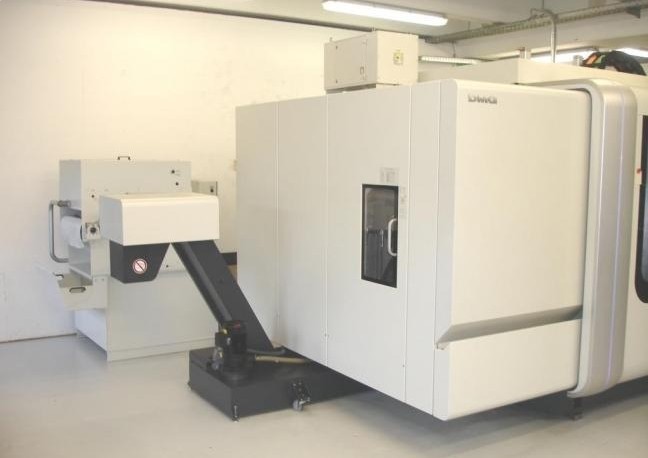

| Chip Convoyer | incluso |
| Spindle life time | 5.644 h |
| Machine life time | 15.774 h |
